Concrete pre-cast segments

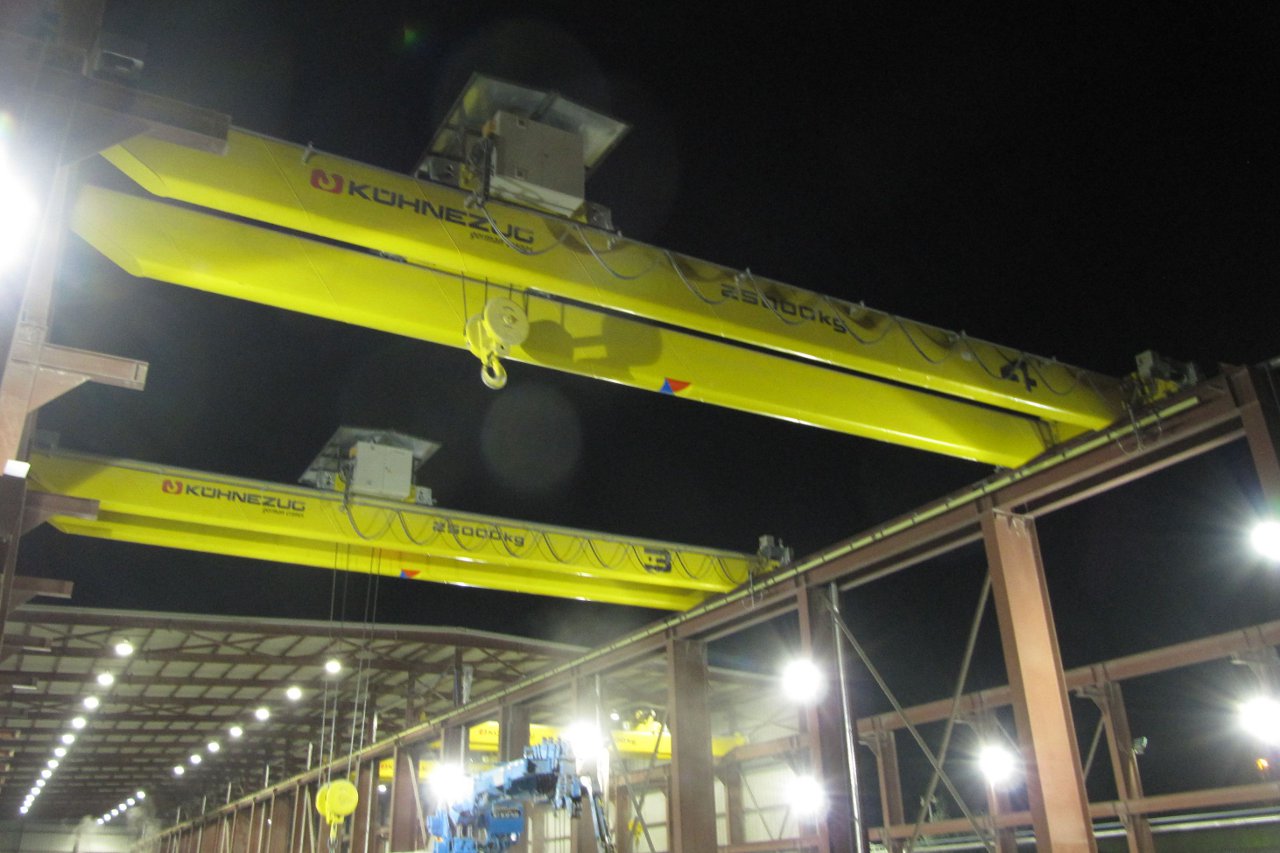

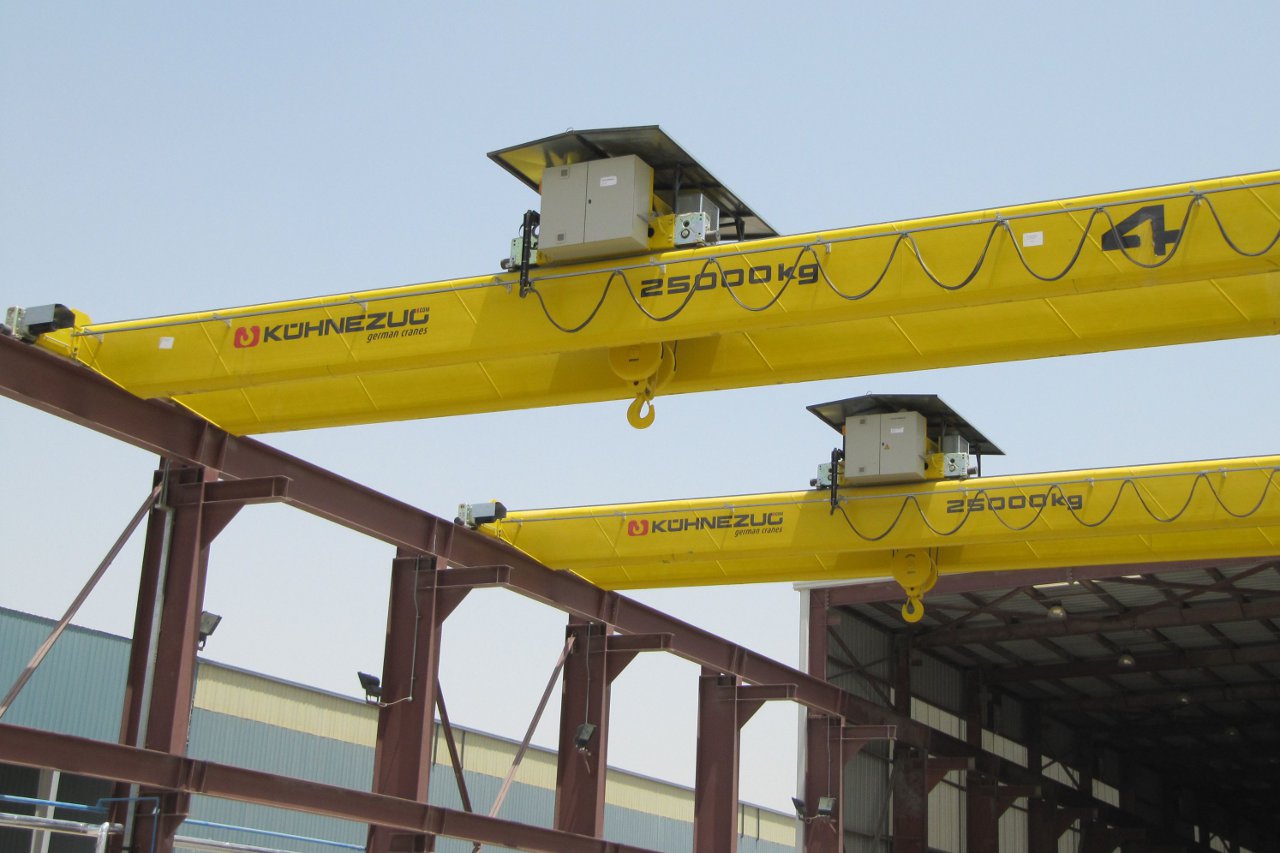

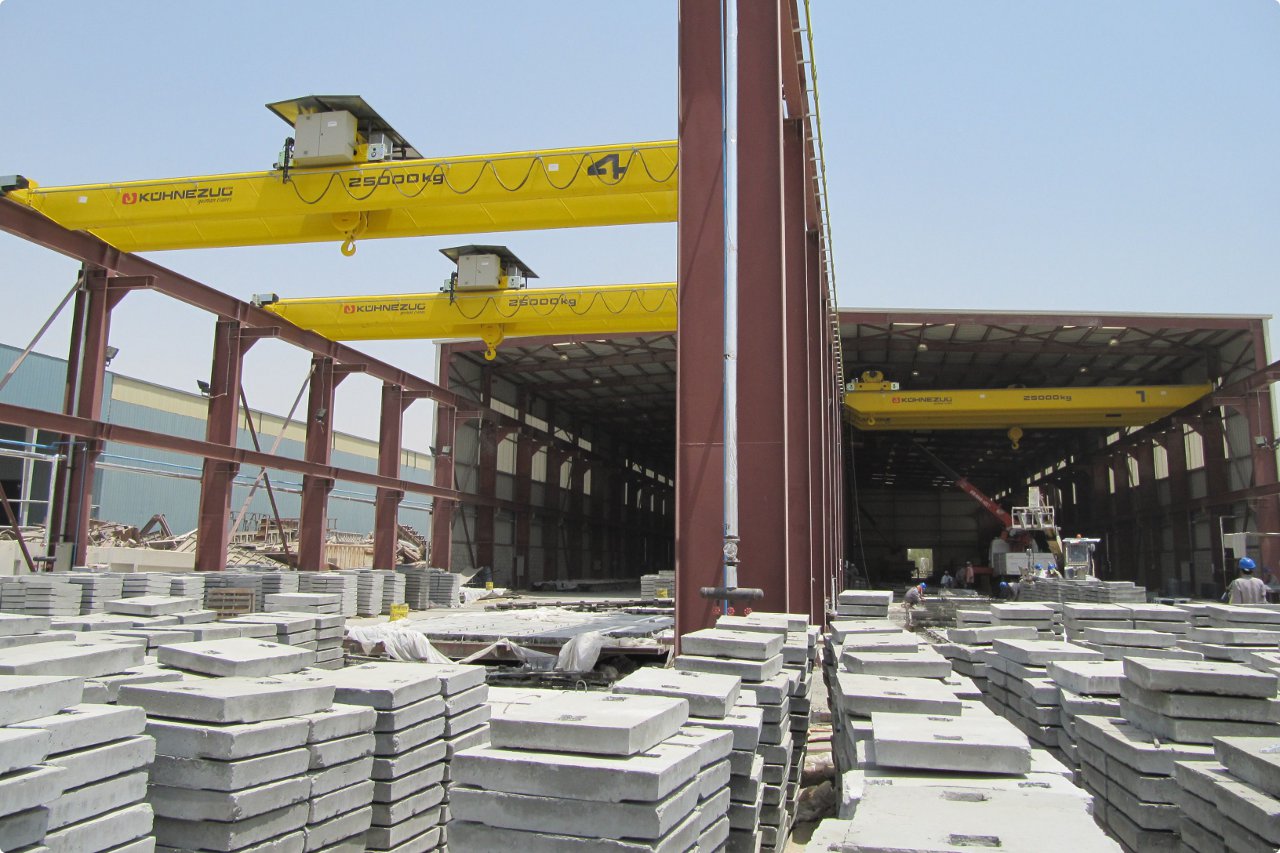

Weatherproof crane system for concrete pre-cast segments in Kuwait
| Crane Type | 8 x Double girder overhead crane |
| max. Capacity | 8 x 25 t |
| Span | 17 m |
| Height of lift | 10 m |
| Lifting speed with full load | 6 m/min |
| Travel speeds crane / trolley | 40 / 20 m/min |
| Frequency inverter | Cranes / Trolleys / Hoists |
| FEM - group | 4m |
| Special features |
|
