Machine construction

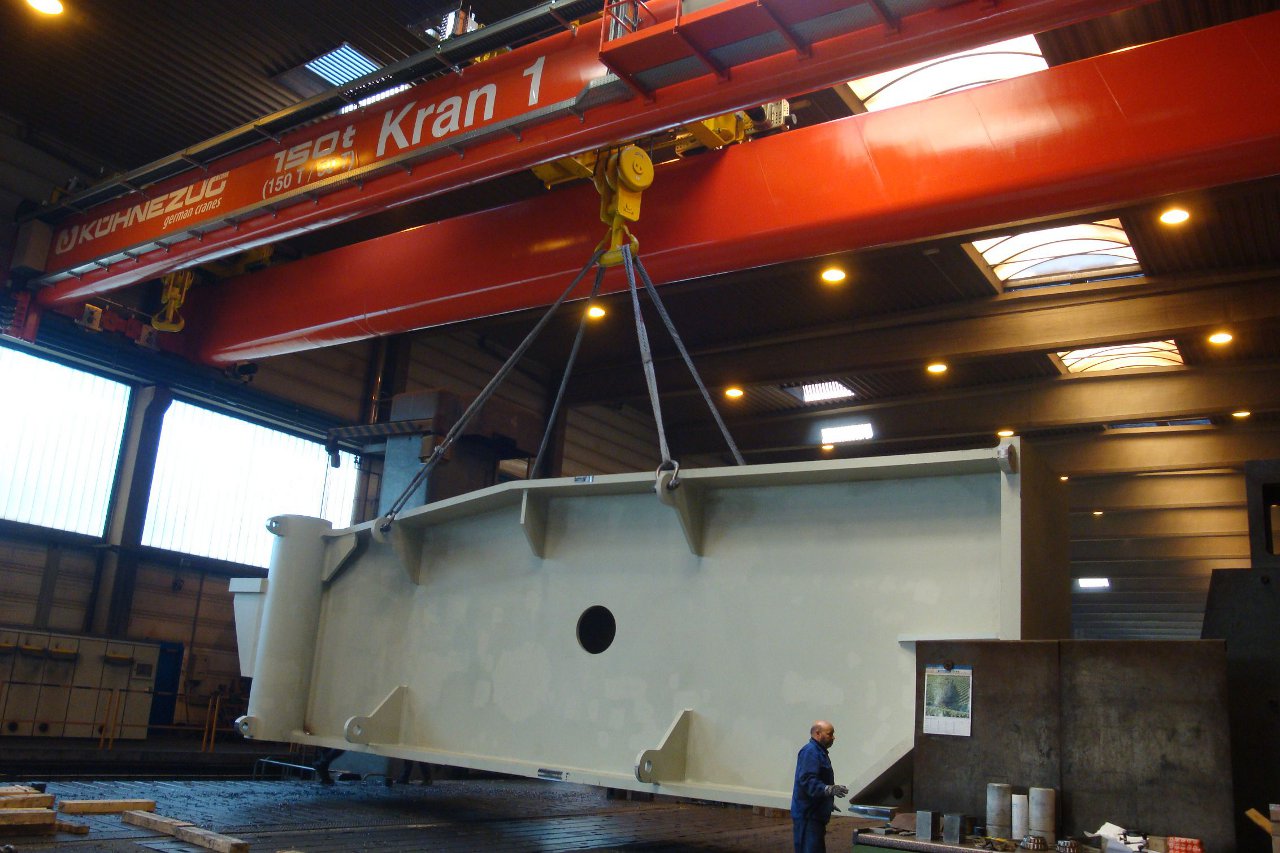

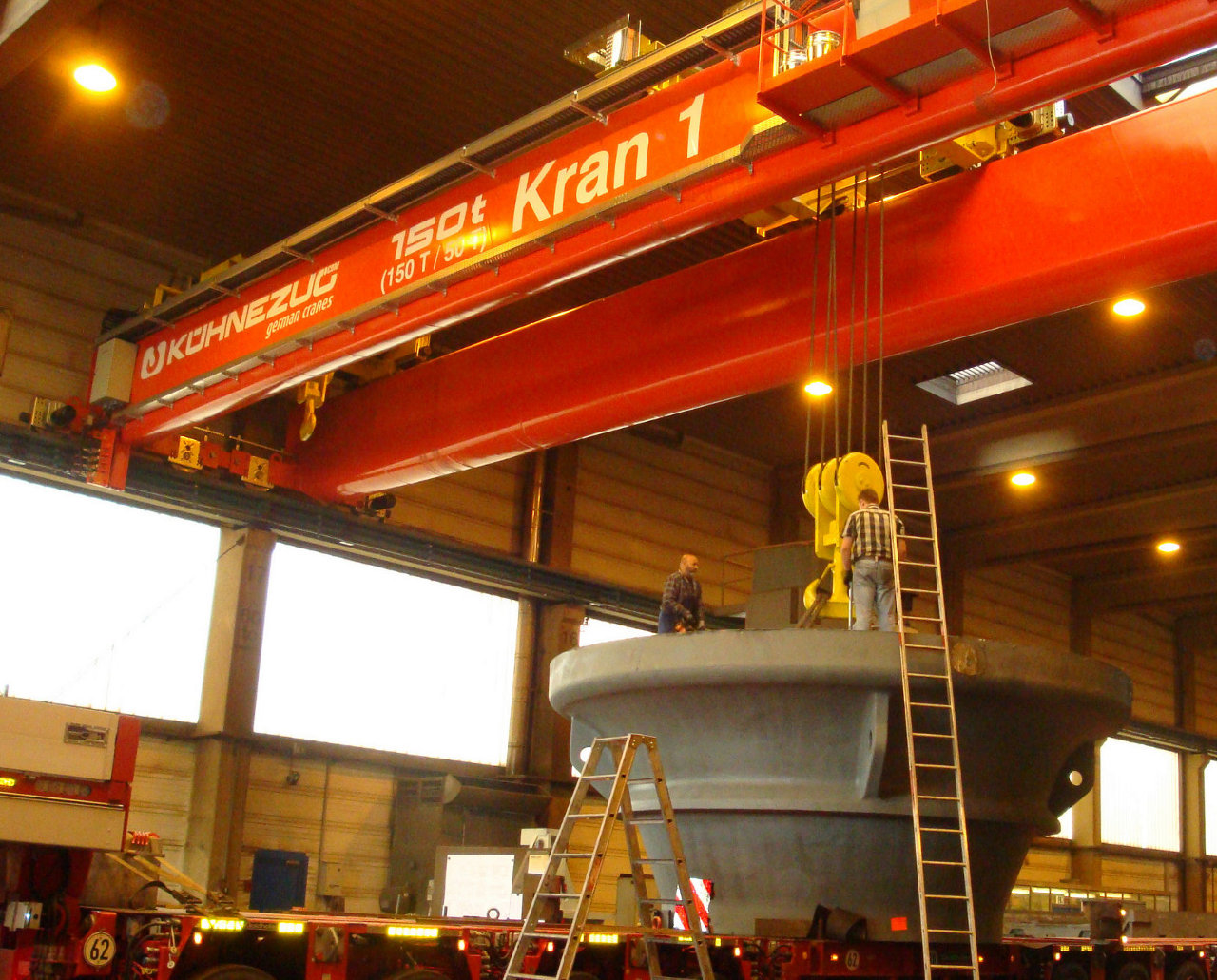

Compact but high performance crane system for heavy loads

Crane Type Double girder overhead crane
max. Capacity 150 t
Span 30,67 m
Height of lift 10,1 m
Lifting speed with full load 4 m/min
Travel speeds crane / trolley 40 / 32 m/min
Frequency inverter Cranes / Trolleys / Hoists
FEM - group 1Am
Special features

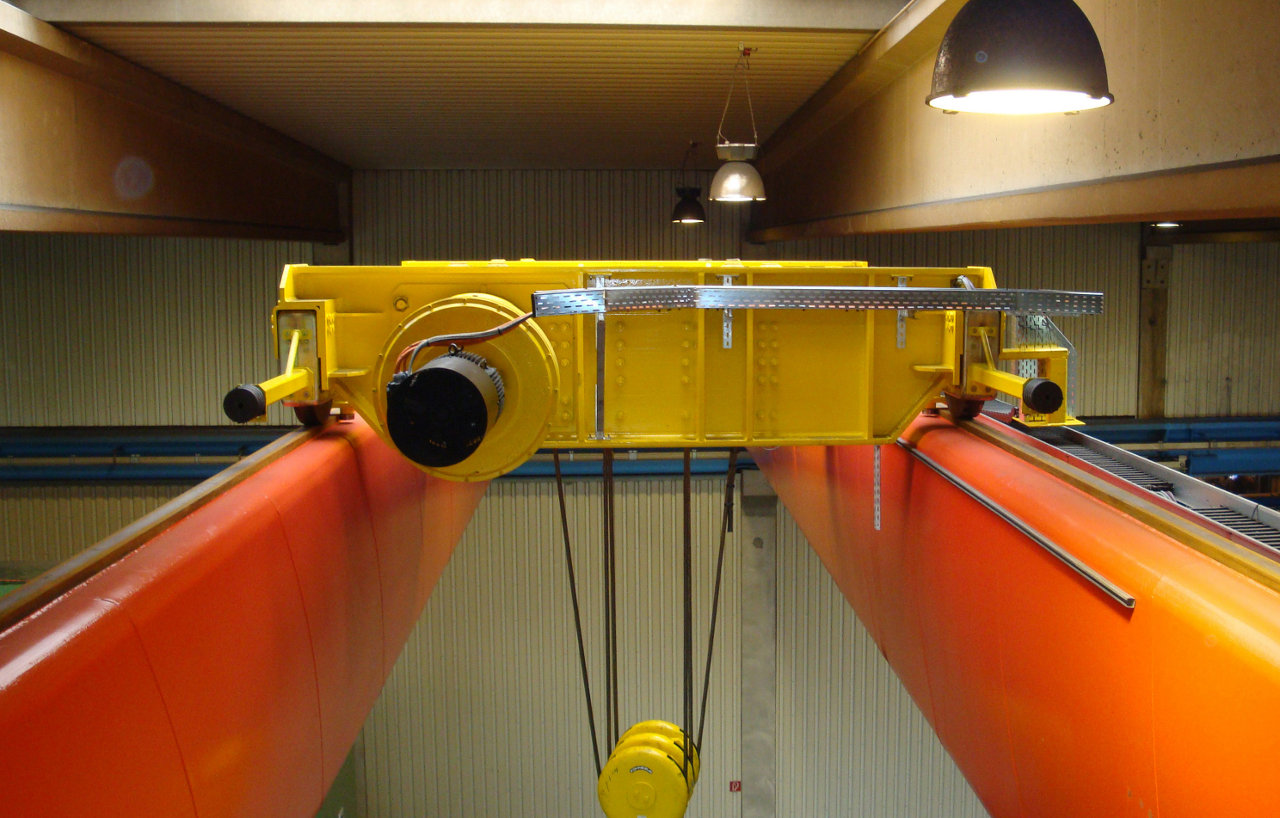

  • Special, lowered trolley for maximal lifting height
  • total height of trolley only 0,9 m
